Derm.Render.Texture Class Reference

Texture. More...

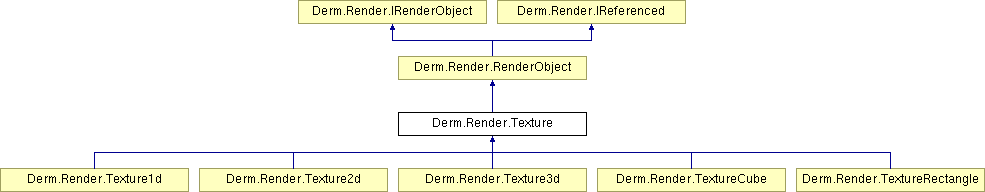

Inheritance diagram for Derm.Render.Texture:

List of all members.

Public Types
enum	Filter {   Nearest,   Linear }
	Texture filter. More...
enum	Wrap {   Clamp,   Repeat,   MirroredRepeat }
	Texture wrapping mode. More...
Public Member Functions
abstract void	Bind (RenderContext ctx)
	Bind this Texture.
override void	Create (RenderContext ctx)
	Create this Texture.
override void	Delete (RenderContext ctx)
	Delete this Texture.
void	RequestMipmapsCreation ()
	Request the creation of this Texture mipmaps.
abstract void	Unbind (RenderContext ctx)
	Unbind this Texture.
Protected Member Functions
void	ApplyParameters (RenderContext ctx, int target)
	Apply Texture parameters of specific target.
void	Bind (RenderContext ctx, int target)
	Bind this Texture on specific target.
void	GenerateMipmaps (RenderContext ctx, int target)
	Generate mipmaps for this Texture.
void	Unbind (RenderContext ctx, int target)
	Unbind this Texture on specific target.
Protected Attributes
Filter	mMagFilter = Filter.Linear
	Magnification filter.
Filter	mMinFilter = Filter.Linear
	Minification filter.
Wrap	mWrapS = Wrap.Repeat
	Wrapping on S coordinate.
Wrap	mWrapT = Wrap.Repeat
	Wrapping on S coordinate.
Properties
bool	HasMipmaps [get, set]
	Flag indicating whether this Texture has mipmaps definition.
int	InternalFormat [get, set]
	Texture internal format.
Filter	MagFilter [get, set]
	Magnification filter property.
Filter	MinFilter [get, set]
	Minification filter property.
Pixel.Type	PixelFormat [get, set]
	Texture source pixel format.
int	TextelDataType [get]
	Texture data type.
int	TextelFormat [get]
	Texture data format.
Wrap	WrapCoordS [get, set]
	Wrapping on texture S coordinate.
Wrap	WrapCoordT [get, set]
	Wrapping on texture T coordinate.

---

Detailed Description

Texture.

Textures are object holding a set of data, that can be accessed within a shader using a set of coordinates. Textures classes derives from Texture, which define a base implementation without specifying the texture dimensionality.

Texture can be one dimensional (Texture1d), two dimensional (Texture2d), three dimensional (Texture3d), cube mapped (TextureCube).

---

Member Enumeration Documentation

enum Derm::Render::Texture::Filter

Texture filter.

Enumerator:

Nearest	Keep the nearest pixel.
Linear	Linearly interpolate pixels in neightboor.

enum Derm::Render::Texture::Wrap

Texture wrapping mode.

Enumerator:

Clamp
Repeat
MirroredRepeat

---

Member Function Documentation

void Derm.Render.Texture.ApplyParameters	(	RenderContext	ctx,
		int	target
	)			[protected]

Apply Texture parameters of specific target.

Parameters:

	ctx	A RenderContext used for setting texture parameter.
	target	A System.Int32 specifying the Texture target.

void Derm.Render.Texture.Bind	(	RenderContext	ctx,
		int	target
	)			[protected]

Bind this Texture on specific target.

Parameters:

	ctx	A RenderContext used for binding this Texture.
	target	A System.Int32 specifying the texture target. It could be one of the following: Gl.TEXTURE_1D Gl.TEXTURE_2D Gl.TEXTURE_RECTANGLE Gl.TEXTURE_3D Gl.TEXTURE_CUBE_MAP

abstract void Derm.Render.Texture.Bind

(

RenderContext

ctx

)

[pure virtual]

Bind this Texture.

Parameters:

ctx

A RenderContext used for binding this Texture.

To call this routine the condition IsCreated shall be true.

Implemented in Derm.Render.Texture1d, Derm.Render.Texture2d, Derm.Render.Texture3d, Derm.Render.TextureCube, and Derm.Render.TextureRectangle.

override void Derm.Render.Texture.Create

(

RenderContext

ctx

)

[virtual]

Create this Texture.

Parameters:

ctx

Implements Derm.Render.RenderObject.

Reimplemented in Derm.Render.Texture1d, Derm.Render.Texture2d, Derm.Render.Texture3d, Derm.Render.TextureCube, and Derm.Render.TextureRectangle.

override void Derm.Render.Texture.Delete

(

RenderContext

ctx

)

[virtual]

Delete this Texture.

Parameters:

ctx

Implements Derm.Render.RenderObject.

void Derm.Render.Texture.GenerateMipmaps	(	RenderContext	ctx,
		int	target
	)			[protected]

Generate mipmaps for this Texture.

Parameters:

	ctx	A RenderContext used for mipmapping definition.
	target	A System.Int32 indicating the target for generating bitmaps.

void Derm.Render.Texture.RequestMipmapsCreation

(

)

Request the creation of this Texture mipmaps.

void Derm.Render.Texture.Unbind	(	RenderContext	ctx,
		int	target
	)			[protected]

Unbind this Texture on specific target.

Parameters:

	ctx	A RenderContext used for binding this Texture.
	target	A System.Int32 specifying the texture target. It could be one of the following: Gl.TEXTURE_1D Gl.TEXTURE_2D Gl.TEXTURE_RECTANGLE Gl.TEXTURE_3D Gl.TEXTURE_CUBE_MAP

abstract void Derm.Render.Texture.Unbind

(

RenderContext

ctx

)

[pure virtual]

Unbind this Texture.

Parameters:

ctx

A RenderContext used for binding this Texture.

To call this routine the condition IsCreated shall be true.

Implemented in Derm.Render.Texture1d, Derm.Render.Texture2d, Derm.Render.Texture3d, Derm.Render.TextureCube, and Derm.Render.TextureRectangle.

---

Member Data Documentation

Filter Derm.Render.Texture.mMagFilter = Filter.Linear [protected]

Magnification filter.

Filter Derm.Render.Texture.mMinFilter = Filter.Linear [protected]

Minification filter.

Wrap Derm.Render.Texture.mWrapS = Wrap.Repeat [protected]

Wrapping on S coordinate.

Wrap Derm.Render.Texture.mWrapT = Wrap.Repeat [protected]

Wrapping on S coordinate.

---

Property Documentation

bool Derm.Render.Texture.HasMipmaps [get, set]

Flag indicating whether this Texture has mipmaps definition.

This flag specify whether this Texture has mipmaps, or not. By

int Derm.Render.Texture.InternalFormat [get, set, protected]

Texture internal format.

Depending on the pixel data format, a default internal format is determined. It's possible to force the internal format by setting this property to a correct value. To default the internal format assign 0 to this property.

Filter Derm.Render.Texture.MagFilter [get, set]

Magnification filter property.

Filter Derm.Render.Texture.MinFilter [get, set]

Minification filter property.

Pixel.Type Derm.Render.Texture.PixelFormat [get, set, protected]

Texture source pixel format.

int Derm.Render.Texture.TextelDataType [get, protected]

Texture data type.

int Derm.Render.Texture.TextelFormat [get, protected]

Texture data format.

Wrap Derm.Render.Texture.WrapCoordS [get, set]

Wrapping on texture S coordinate.

Wrap Derm.Render.Texture.WrapCoordT [get, set]

Wrapping on texture T coordinate.
