Derm.Render.RenderGraphNode Class Reference

Graph node dedicated for rendering. More...

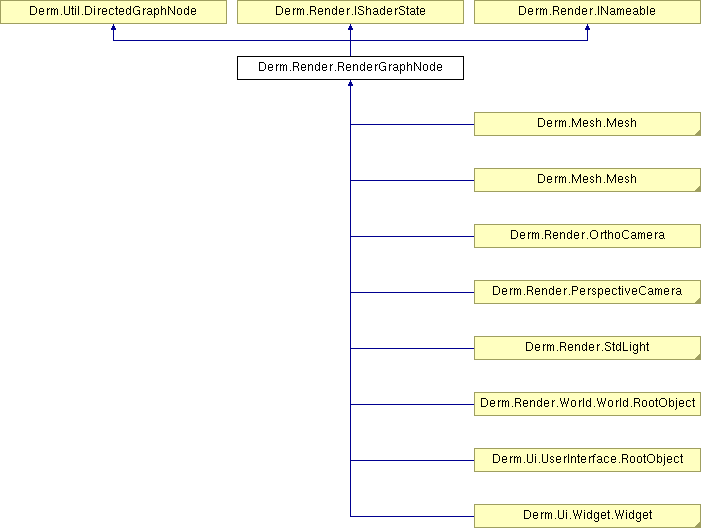

Inheritance diagram for Derm.Render.RenderGraphNode:

Public Types
enum	CullFunct { False, True, Occlusion }
	Renderable culling function. More...
Public Member Functions
void	ApplyModelTransform (RenderContext ctx)
	Apply this RenderGraphNode hierarchy model transformations.
void	Cull (RenderWindow window, RenderContext ctx)
	Determine Renderable culling state (including hierarchy).
RenderState	GetRenderState (string name)
	Obtain a render state.
void	Orientate (Vertex3f r, bool inc)
void	Orientate (Vertex3f r)
void	Orientate (Quaternion q, bool inc)
void	Orientate (Quaternion q)
void	Pick (RenderContext ctx)
	Pick this graph node hierarchy.
void	Render (RenderContext ctx)
	Render this graph node hierarchy.
void	ResetName ()
	Reset the name.
void	ResetRenderState (string sName)
	Reset a render state.
void	SetRenderState (RenderState rState)
	Set a render state.
virtual void	SetState (RenderContext ctx, ShaderProgram sProgram)
	Set shader program state.
void	Translate (Vertex3f v, bool inc)
void	Translate (Vertex3f v)
Protected Member Functions
void	ApplyThisModelTransform (RenderContext ctx)
	Apply this Renderable model transformations.
virtual void	CullThis (RenderWindow window, RenderContext ctx)
	Determine this Renderable culling state.
virtual void	RenderThis (RenderContext ctx, ShaderProgram sProgram)
	Actually render this render graph node.
Properties
virtual IEnumerable< ShaderObject >	Attachments `[get]`
	Shader object required for correct linkage.
CullFunct	CullFunction `[get, set]`
	Culling function of this Renderable.
virtual IEnumerable< string >	Defines `[get]`
	Shader source preprocessor definitions.
bool	IsCulled `[get]`
	Determine this Renderable culling state.
string	Name `[get, set]`
	Name property.
Quaternion	Orientation `[get]`
BaseShaderAttributes	RenderAttributes `[get, set]`
	ShaderAttributes used for rendering.
ShaderProgram	RenderShader `[get, set]`
	ShaderProgram used for rendering.
Vertex3f	Translation `[get]`
Events
CompilerEventHandler	CompilerEvent
	Compiler event.
LinkerEventHandler	LinkerEvent
	Linker event.

Detailed Description

Graph node dedicated for rendering.

A class deriving from RenderGraphNode is able to partecipate into a RenderHierarchy. In particoular, a RenderGraphNode class allow:

To execute rendering operations
To be picked basing on its rendering operation
To be transformed by parent RenderGraphNode instances
To setup rendering state, and to inherit rendering state by parent RenderGraphNode instances
To be culled avoiding unnecessary rendering operations

Rendering operations are defined exlusively by a ShaderProgram instance, with its inpus and its uniforms. This class doesn't define a default shader, but it' derived classes responsability to setup a ShaderProgram to be executed. Actually the ShaderProgram can be undefined; in this case a RenderGraphNode is used as "invisible" render hierarchy node, and the iterations on the directed graph continue across each RenderGraphNode instance. But to produce rendering results, the RenderShader property but be set to a valid ShaderProgram.

Before calling the routine RenderThis, the RenderGraphNode implementation updates the current rendering state, which is represented by every information which is able to modify the rendering results produces by the render shader program.

The current model view matrix is represented by RenderContext:Model, which is initially set identity, it is transformed by RenderGraphNode instances during render hierarchy iteration. The transformation is defined by the protected routine ApplyThisModelTransform. The model view matrix can be used for transforming primitives in a homogeneous three dimensional space.

Member Enumeration Documentation

enum Derm::Render::RenderGraphNode::CullFunct

Renderable culling function.

Enumerator:

False

False cull test function.

The Renderable will never be culled. It will always rendered. This is the default Renderable cull test function.

True

True cull test function.

The Renderable will always be culled. It will never be rendered.

Occlusion

Occlusion query cull test function.

The Renderable will be culled if the occlusion query determine whether the rendering doesn't produce pixel fragments. To use this cull function, the RenderContext capabilities must declare that the extension GL_ARB_occlusion_query is implemented.

Member Function Documentation

void Derm.Render.RenderGraphNode.ApplyModelTransform ( RenderContext ctx )

Apply this RenderGraphNode hierarchy model transformations.

Parameters:

ctx

RenderContext object used for rendering.

This routine modify the model view matrix in the way that the resulting model view matrix is the multiplication of the hierarchy transformations, from the root Renderable until this Renderable.

Using this routine is possible to determine the model transformations applied to this Renderable to obtain world coordinates of this RenderGraphNode.

void Derm.Render.RenderGraphNode.ApplyThisModelTransform ( RenderContext ctx ) [protected]

Apply this Renderable model transformations.

Parameters:

ctx

RenderContext object used for rendering.

Unlike ApplyModelTransform, this routine apply to the current matrix this Renderable model transformations. The transformations are:

Renderable orientation (rotate transform)
Renderable position (translate transform)

void Derm.Render.RenderGraphNode.Cull	(	RenderWindow	window,
		RenderContext	ctx
	)

Determine Renderable culling state (including hierarchy).

Parameters:

	window
	ctx

This routine is responsible of the culling of this Renderable, and indirectly of the hierarchy starting from this Renderable. It execute a cull test on this Renderable, and if the cull test is passed execute the same test of the Renderable children.

If the cull test hasn't passed, the Renderable won't be rendered, hiding also its hierarchy. This is crucial, since the parent cull test determine the visibility of its all entire hierarchy.

virtual void Derm.Render.RenderGraphNode.CullThis	(	RenderWindow	window,
		RenderContext	ctx
	)			`[protected, virtual]`

Determine this Renderable culling state.

Parameters:

	window	A RenderWindow
	ctx	A RenderContext

RenderState Derm.Render.RenderGraphNode.GetRenderState ( string name )

Obtain a render state.

Parameters:

name

Returns:

void Derm.Render.RenderGraphNode.Orientate	(	Vertex3f	r,
		bool	inc
	)

void Derm.Render.RenderGraphNode.Orientate ( Vertex3f r )

void Derm.Render.RenderGraphNode.Orientate	(	Quaternion	q,
		bool	inc
	)

void Derm.Render.RenderGraphNode.Orientate ( Quaternion q )

void Derm.Render.RenderGraphNode.Pick ( RenderContext ctx )

Pick this graph node hierarchy.

Parameters:

ctx

A RenderContext used for picking.

void Derm.Render.RenderGraphNode.Render ( RenderContext ctx )

Render this graph node hierarchy.

Parameters:

ctx

A RenderContext used for rendering.

This routine is the entry point for executing rendering operation of this RenderGraphNode hierarchy. It render this RenderGraphNode instance, and then render its hierarchy. Note that this routine doesn't define the rendering operations, but let derived classes to define them overriding the routine RenderThis. In the case derived classes doesn't override that routine, this node doesn't execute rendering operations.

Before rendering this RenderGraphNode and its hierarchy, the ModelView of ctx is modified to follow this RenderGraphNode model transformations; indeed the hierarchy linked with RenderGraphNode instance is affected by the transformation. The ctx ModelView is restored before the routine ends.

In the case this RenderGraphNode is culled, it won't be rendered, including its hierarchy.

virtual void Derm.Render.RenderGraphNode.RenderThis	(	RenderContext	ctx,
		ShaderProgram	sProgram
	)			`[protected, virtual]`

Actually render this render graph node.

Parameters:

	ctx	A RenderContext used for rendering.
	sProgram	A ShaderProgram actually bound for rendering.

void Derm.Render.RenderGraphNode.ResetName ( )

Reset the name.

Implements Derm.Render.INameable.

void Derm.Render.RenderGraphNode.ResetRenderState ( string sName )

Reset a render state.

Parameters:

sName

A System.String specifying the state name to reset.

void Derm.Render.RenderGraphNode.SetRenderState ( RenderState rState )

Set a render state.

Parameters:

rState

A RenderState which affect rendering operations.

virtual void Derm.Render.RenderGraphNode.SetState	(	RenderContext	ctx,
		ShaderProgram	sProgram
	)			`[virtual]`

Set shader program state.

Parameters:

	ctx
	sProgram

Implements Derm.Render.IShaderState.

void Derm.Render.RenderGraphNode.Translate	(	Vertex3f	v,
		bool	inc
	)

void Derm.Render.RenderGraphNode.Translate ( Vertex3f v )

Property Documentation

virtual IEnumerable<ShaderObject> Derm.Render.RenderGraphNode.Attachments [get]

Shader object required for correct linkage.

Implements Derm.Render.IShaderState.

Reimplemented in Derm.Mesh.Mesh.

CullFunct Derm.Render.RenderGraphNode.CullFunction [get, set]

Culling function of this Renderable.

virtual IEnumerable<string> Derm.Render.RenderGraphNode.Defines [get]

Shader source preprocessor definitions.

Implements Derm.Render.IShaderState.

bool Derm.Render.RenderGraphNode.IsCulled [get]

Determine this Renderable culling state.

Returns:

string Derm.Render.RenderGraphNode.Name [get, set]

Name property.

Implements Derm.Render.INameable.

Quaternion Derm.Render.RenderGraphNode.Orientation [get]

BaseShaderAttributes Derm.Render.RenderGraphNode.RenderAttributes [get, set]

ShaderAttributes used for rendering.

ShaderProgram Derm.Render.RenderGraphNode.RenderShader [get, set]

ShaderProgram used for rendering.

Vertex3f Derm.Render.RenderGraphNode.Translation [get]

Event Documentation

CompilerEventHandler Derm.Render.RenderGraphNode.CompilerEvent

Compiler event.

Implements Derm.Render.IShaderState.

LinkerEventHandler Derm.Render.RenderGraphNode.LinkerEvent

Linker event.

Implements Derm.Render.IShaderState.
